The Metric Tensor and Warp Bubbles: how spacetime is measured, and how it might be shaped

Level 0 · The picture

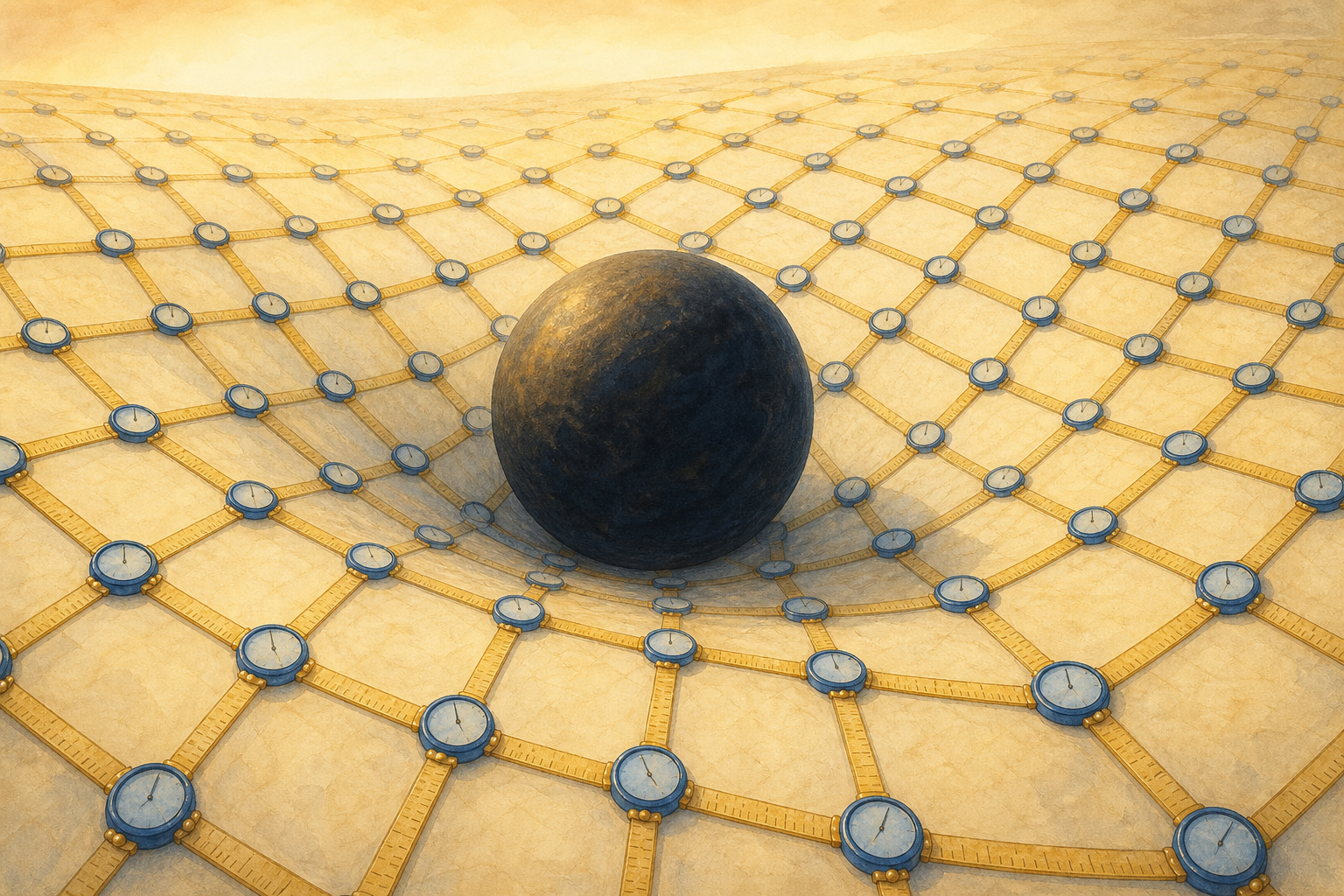

Imagine that at every point in space there is a tiny ruler and a tiny clock. The ruler tells you how long a step is at that point. The clock tells you how long a second is there. Now imagine a rulebook that lists, for every point, the length of its ruler and the speed of its clock. That rulebook is the metric. It is the thing this whole site is named after.

Einstein's discovery was that the rulebook is not fixed. Put a heavy object somewhere and the rulers near it stretch and the clocks near it slow. You have felt the result all your life. We call it gravity. And the effect is not a story: your phone corrects for it every time it finds your position, because the clocks on GPS satellites run about 38 microseconds a day faster than clocks on the ground, and without the correction your map would drift by kilometres within a day.

Now the exciting part. If mass can rewrite the rulebook, could we rewrite it on purpose? In 1994 Miguel Alcubierre wrote down a rulebook in which space shrinks in front of a craft and stretches behind it. Inside the bubble nothing moves fast at all; the space around the bubble does the moving. The craft arrives faster than light could have travelled through ordinary space, without ever breaking the local speed limit. That is a warp bubble, and it is a legitimate solution of Einstein's equations.

The distance is what changed

You do not move the ship. You engineer the distance. On the upper rail the coordinate marks never move and the craft crosses them at an ordinary local speed. On the lower rail the same marks are placed by proper distance — the distance a ruler would actually measure. Ahead of the craft they crowd together, behind it they spread apart, and inside the craft's own neighbourhood the spacing is untouched. Raise the shaping amplitude and watch which quantity changes.

The geometry and the frame

Shaping amplitude — the largest fractional change in scale

45%

Position along the line

0.080

Play the crossingStep backStep forwardReturn to the start, flat

• The craft's own neighbourhood
• The craft

What is happening: The distance still ahead has contracted and the distance already behind has expanded by the matching amount. The craft's own neighbourhood measures exactly what it measured before, so the traveller's frame is flat and unremarkable, and the local speed across it is ordinary.

Proper distance still ahead — as a fraction of the flat distance

87.1%

Proper distance already behind — as a fraction of the flat distance

117.4%

The craft's neighbourhood, compared with flat

100%

Nothing here moves through local space any faster than it otherwise would. Inside the flat neighbourhood the craft's speed is an ordinary local speed at every frame. The distance is the engineered quantity.

What is taken from ahead is given to behind: the profile is odd about the craft, so the two changes cancel and the line as a whole is neither created nor destroyed. The proper distance is redistributed, not manufactured.

Published warp metrics are mathematical geometries in general relativity, not demonstrations of a working craft. This one-dimensional teaching profile uses scaled axes: flat at the craft, contracted ahead, expanded behind and conserved overall. The drawing itself is not a solution of the field equations.

The source sheet: Alcubierre 1994, The warp drive — hyper-fast travel within general relativity

Ways to think about it

• Gravity is not a pull. It is what a changed rulebook feels like from the inside.
• The metric is measured every day, by atomic clocks, by satellites and by kilometre-long interferometers. It is the surest ground this site stands on.
• A warp bubble does not break the speed limit. It moves the road.

Level 1 · Foundations

Start with distance on a flat sheet of paper. Pythagoras tells you that a step of three units east and four units north is five units long. That rule is a metric: it turns coordinate differences into a real distance. On a globe the rule changes from place to place, because the lines of longitude squeeze together near the poles. A metric that changes from place to place is the signature of a curved surface.

Einstein's step was to treat time as a fourth direction and to let the rule change from place to place there too. Three things follow, and all three have been measured.

Clocks run at different rates at different heights. In 1960 Robert Pound and Glen Rebka sent gamma rays up a 22.5-metre tower at Harvard and measured the tiny shift in their frequency — about two parts in a thousand trillion — exactly as the metric predicts. In 1971 Joseph Hafele and Richard Keating flew atomic clocks around the world and compared them with clocks left at home. The flown clocks disagreed with the stay-at-home clocks by tens to hundreds of nanoseconds, as predicted.

Light bends around mass. In 1919 Arthur Eddington photographed stars near the eclipsed Sun and found them displaced by about 1.75 seconds of arc, twice the Newtonian value and exactly Einstein's. Today radio astronomers measure the same bending to a fraction of a percent.

The metric itself can ripple. On 14 September 2015 the two LIGO detectors recorded a passing gravitational wave from two black holes merging over a billion light-years away. For a fraction of a second the length of a four-kilometre ruler changed by about one part in a billion trillion. That is the metric, moving, caught in the act.

The metric and its response to mass are among the most precisely tested facts in science.

Level 2 · The rules

Here is the metric written down. Everything on this site that says "spacetime metric" means this object.

The line element(1)

$$ds^2 = g_{\mu\nu}\,dx^{\mu}\,dx^{\nu}$$

In empty flat space the rulebook is simple: ds² = −c²dt² + dx² + dy² + dz². Space is Pythagoras; time enters with the opposite sign and a factor of the speed of light. Near a mass M the rulebook changes. Outside a spherical body the time entry becomes −(1 − 2GM/rc²) c²dt², and that single factor is the whole of ordinary gravity.

Clock rate near a mass(2)

$$\frac{d\tau}{dt} = \sqrt{1 - \frac{2GM}{rc^2}}$$

A worked example: the GPS correction. A GPS satellite orbits at about 20,200 kilometres altitude. Its clock sits higher in Earth's gravity than a ground clock, so by rule 2 it runs faster: about 45 microseconds a day. It also moves at about 3.9 kilometres per second, so special relativity slows it: about 7 microseconds a day. The net effect is a gain of about 38 microseconds a day. Light travels 11 kilometres in 38 microseconds. That is how far your position would drift each day if the satellites' clocks were not deliberately set to run slow before launch.

Level 3 · Undergraduate

What writes the rulebook. Einstein's field equations tie the curvature of the metric to the matter and energy present:

Einstein's field equations(3)

$$G_{\mu\nu} = \frac{8\pi G}{c^4}\,T_{\mu\nu}$$

Free objects follow geodesics, the straightest possible paths in the curved rulebook. A thrown ball arcs because a straight line through curved spacetime looks curved to us. No force is involved; the rulebook is.

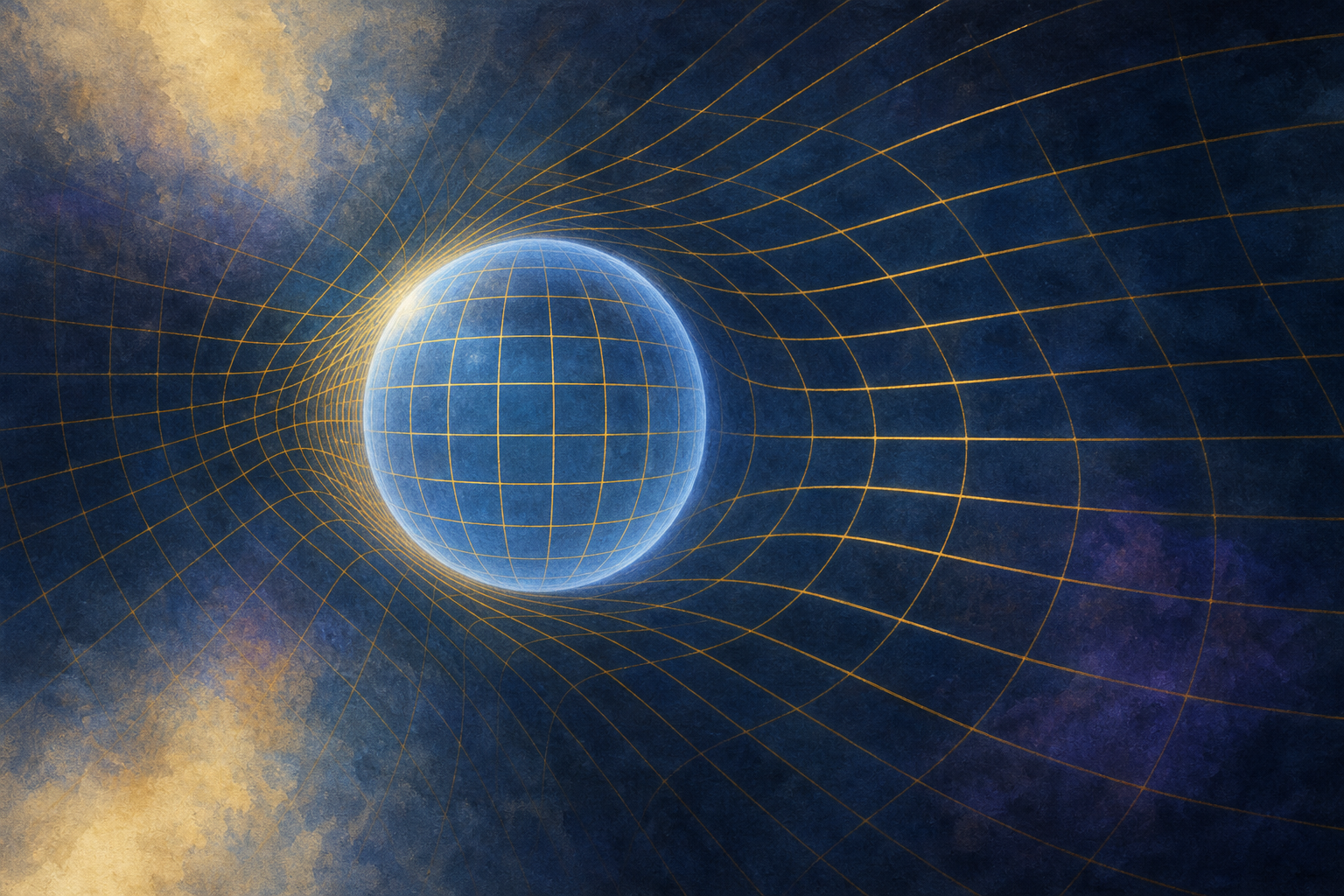

The Alcubierre metric. Alcubierre asked a simple question: which rulebook would carry a small region of flat space along a chosen path at any speed? His answer, for motion along x at speed v_s:

The Alcubierre line element(4)

$$ds^2 = -c^2 dt^2 + \big(dx - v_s\, f(r_s)\, dt\big)^2 + dy^2 + dz^2$$

The price. Put the Alcubierre metric into the field equations and read off what kind of matter the wall must contain. The energy density that comes out is proportional to −v_s² times the square of the wall's steepness. It is negative everywhere in the wall, for any speed. Ordinary matter never has negative energy density. This is where the physics gets interesting rather than where it stops, because negative energy density is not forbidden — it is regulated.

Energy conditions. Classical general relativity was built with a set of assumptions called energy conditions. The weak energy condition says every observer measures a non-negative energy density. The Alcubierre wall violates it. But quantum field theory violates it too, in the laboratory: the space between two Casimir plates has a lower energy density than the vacuum outside them, and that lowering is what pulls the plates together. Negative energy density, measured. The zero-point-field course on this site tells that story in full.

The Alcubierre metric is an exact solution of Einstein's equations, and negative energy density is a measured laboratory fact.

Producing and controlling enough of it to shape a metric on purpose is the research programme.

Level 4 · Graduate

How much negative energy, and for how long. Quantum field theory allows negative energy density but charges for it. Larry Ford and Thomas Roman showed in 1995 that a region can dip below zero energy only for a limited time, and the deeper the dip the shorter the time. These quantum inequalities are the rulebook for exotic matter.

A quantum inequality (massless field, four dimensions)(5)

$$\int_{-\infty}^{\infty} \langle T_{00}\rangle\, \frac{\tau\,dt}{\pi\,(t^2+\tau^2)} \;\geq\; -\frac{3\hbar}{32\pi^2 c^3\,\tau^4}$$

How much, and for how long

Nature will let the energy density at a point sit below the ambient vacuum level by as much as you like — and then it keeps the books over time. Ask for a deeper dip and the window you may hold it in collapses, as the fourth root. Set a depth, set a duration, and watch the envelope decide.

What you are asking for

Depth below the ambient level, as a power of ten in joules per cubic metre

12.0

How long you want to hold it, as a power of ten in seconds

-9.0

Back to the first setting

At this setting: This request sits outside the envelope. Hold the same depth for a shorter window, or take a shallower dip, and it comes back inside.

Deepest dip this window allows

3.72E-26 J/m³

Longest window this depth allows

4.39E-19 s

The floor the inequality sets

-3.72E-26 J/m³

The warp bill, priced with the same inequality

Bubble speed, as a fraction of the speed of light

0.5

Bubble wall thickness the inequality forces: 8.08E-34 m

Apply the inequality inside a region small enough to count as flat and the wall of a warp bubble is forced to of order a hundred Planck lengths times the bubble's speed. Going faster thickens the wall and raises the bill in exact proportion.

Integrate across a wall that thin, for a bubble large enough to hold a ship, and Pfenning and Ford's total comes to of order ten to the twentieth galaxy masses. That is not a closed door. It is an itemised bill, and every design since — the topological bottle, the toroidal reshaping, the subluminal positive-energy shell — is an attempt to cut a line off it.

A dip is a loan, and it is always repaid with interest. Separate a pulse below the ambient level from the compensating pulse above it and the second must be strictly larger than the first, with a surcharge that grows as the gap between them widens — and there is a ceiling on how far apart they can be placed at all.

This is a bound along a worldline, and only along a worldline. There is no spatially averaged quantum inequality in four dimensions: an explicit normalisable state can make the density averaged over a region of space at one instant as far below the ambient level as you like, over a region as large as you like, with the worldline bound still holding and the total energy still positive.

Scope: the flat-space bound for a massless scalar field with a smooth sampling window, which is the form every warp design is measured against. The curved-spacetime versions are stronger statements and carry their own papers.

• The source sheet: Ford and Roman on restrictions on negative energy density in flat spacetime
• The source sheet: Ford and Roman on the quantum interest conjecture
• The source sheet: Pfenning and Ford pricing the warp bubble

The energy budget, and how it fell. In 1997 Michael Pfenning and Ford applied the inequalities to the Alcubierre bubble. They forced the wall to be extraordinarily thin, and a thin wall at a given speed needs a total negative energy far larger than the mass of the observable universe. That number became the field's starting line. Two years later Chris Van Den Broeck showed that a small change of geometry — keeping the outside of the bubble microscopic while expanding the inside — brings the budget down to the scale of a few solar masses, with a comparable amount of positive energy alongside. Harold White's 2011 analysis of a thicker, oscillating toroidal wall brought the estimate down further, to the scale of a spacecraft. Then in 2021 two papers changed the character of the question. Erik Lentz found warp-type solutions — hyper-fast solitons — built entirely from positive energy in Einstein–Maxwell-plasma theory. Alexey Bobrick and Gianni Martire published a general framework showing what any warp drive must be made of and that subluminal warp drives can be made from ordinary positive energy in principle, while superluminal ones still need the negative kind.

The shell explorer

Set the shell's radius, the thickness of its wall and the speed it carries, and read back where the energy density goes negative and by how much. The map is a slice through the shell along its direction of travel; the darker the cell, the more negative the density an observer at rest in the slices would measure there.

This shell

Shell radius

100 m

Wall thickness

10.0 m

Shell velocity

1.0 c

Back to the starting shell

• Negative energy density
• Flat: no energy density

Most negative energy density on the map:

-2.57E39 J/m³

Total, over the whole shell:

-3.37E45 J

The same total as a mass equivalent:

-3.75E31 g

The published requirement, for comparison

Wall thickness the quantum inequality permits, at this speed:

1.62E-33 m

What this model gives for a hundred-metre shell with that wall:

-2.31E65 g

What Pfenning and Ford published for the same case:

-6E65 g

The two agree to an order of magnitude, which is what a closed-form model and a published estimate should do. The comparison is the point of the instrument: move the wall slider to anything a workshop could build and the bill falls by dozens of orders of magnitude, and that is precisely the gap the field is working on.

What this model gives for a hundred-metre shell with that wall: 100 m

Alcubierre, 1994 — the metric this model evaluatesPfenning and Ford, 1997 — the published requirement

The horizon question. For a bubble moving faster than light, the front wall lies beyond a horizon from the point of view of anyone inside; Serguei Krasnikov showed in 1998 that signals from inside cannot reach it. How a craft steers or stops a bubble it cannot signal is one of the field's live design questions, and the answers being explored — pre-laid tracks, subluminal bubbles, external control — are part of what to watch.

The quantum inequalities and the published energy budgets are peer-reviewed mathematics that has steadily moved the requirement toward the physical.

Level 5 · Research frontier

From paper to bench. The programme now under way asks whether the rulebook can be nudged at all, at any scale, in a laboratory. Three threads run through the conversations this course grew out of.

Casimir cavities as metric sources. In 2021 Harold White and colleagues, in DARPA-funded work, computed the energy density inside a Casimir cavity filled with a regular field of micrometre-scale pillars. The pattern that came out — a central region flanked by regions of opposite sign — has the same shape as the energy density the Alcubierre metric requires. No warp bubble was made; a resemblance in a calculation was found. But it pointed at the first thing an experimenter can actually build. White's company, Casimir Inc., went on to win a National Science Foundation award in 2024 and a US Space Force STTR Phase I contract in August 2026 for its solid-state Casimir generator, and the channel this site follows covered that award in full.

Bench tests of spacetime distortion. Chance Glenn presented in August 2026 a bench method for looking for small metric effects, with a dated thrust test — a frontier field at its best, naming its own next measurement in advance. Optical interferometers are the natural instrument, because the metric is exactly what an interferometer reads: a change in the length of a path, measured in fractions of a wavelength.

The stiffness of spacetime as an engineering number. The constant c⁴/8πG in the field equations is about five times ten to the forty-second newtons: the stiffness of spacetime expressed as a force. Chad Wanless's warp-drive observables and the channel's own discussion of spacetime's "breaking point" both start from that number, asking what a craft that shapes its own metric would look like from outside — the light bending, the time dilation, the absence of a shock wave — so that observations can be compared with a specific prediction rather than a vague one.

Laboratory metric engineering: a well-posed programme with funded experiments, no measured metric signal yet, and its next tests named.

What to watch

1. A measured energy density inside a designed Casimir structure that goes beyond the plain-plate value, published with the geometry so it can be repeated.
2. An interferometer bench test of spacetime distortion with the expected fringe shift stated before the run, and an independent replication.

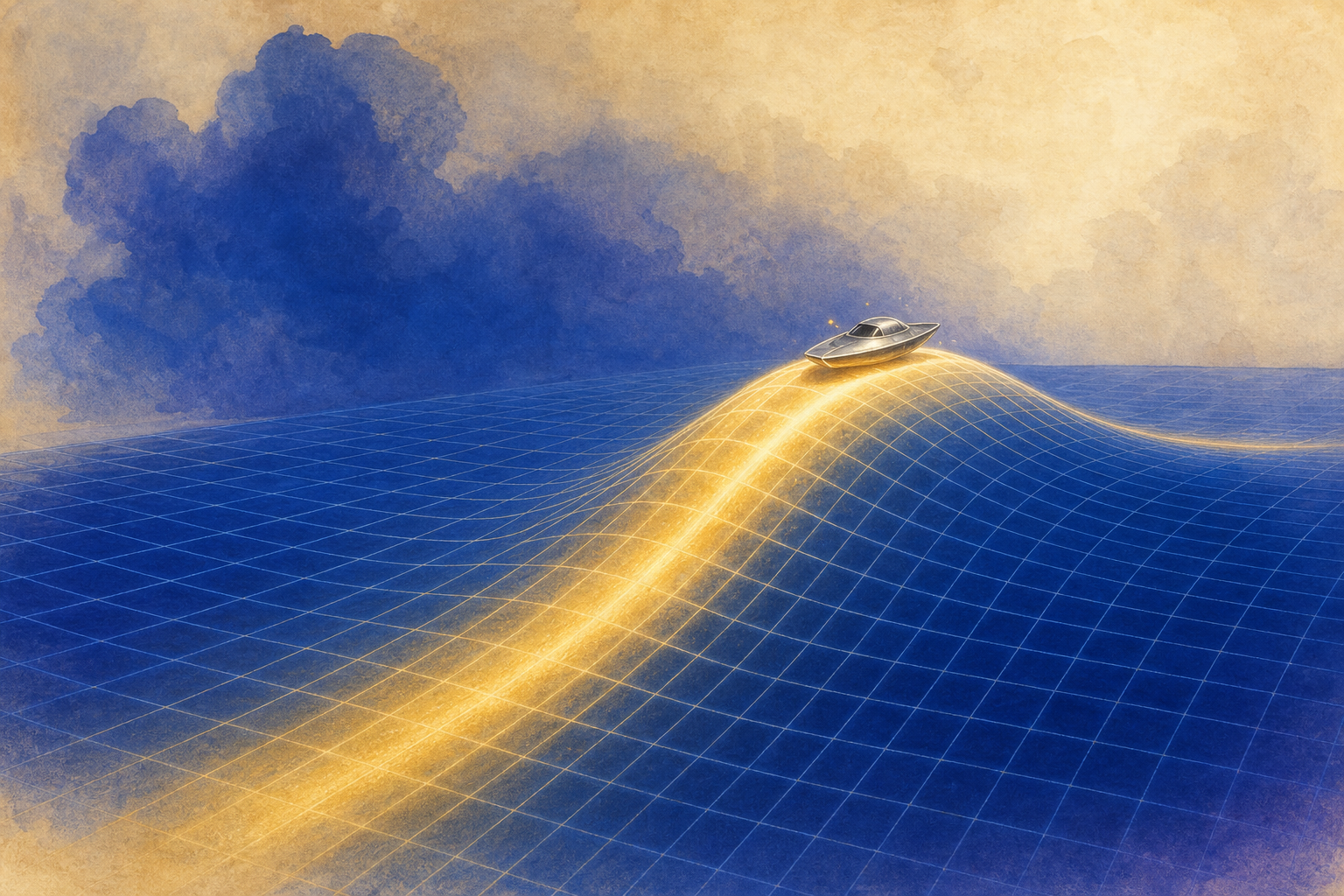

3. A positive-energy warp solution paired with a stated way to create and steer it, and a table-top analogue test of the geometry.

The objection

“A warp drive needs negative energy, which does not exist, so the whole idea is science fiction.”

The answer

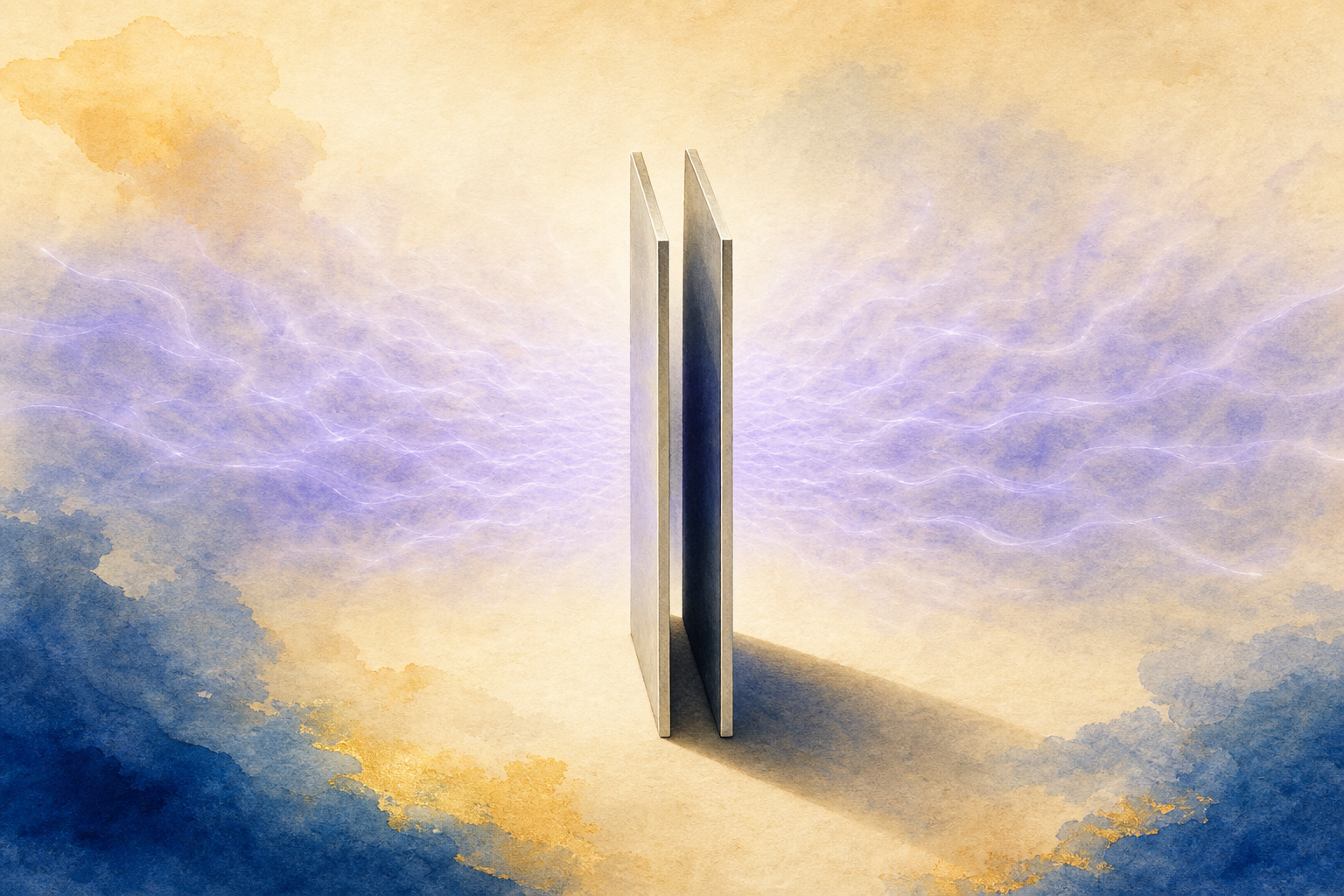

Negative energy density does exist, and it has been measured: the gap between Casimir plates has less energy than the empty space outside it, and that difference is what pushes the plates together. What quantum theory forbids is unlimited negative energy held for unlimited time; the quantum inequalities of Level 4 say exactly how much can be borrowed and for how long. Within those rules the energy budget for a warp bubble has fallen, paper by paper, from more than the universe to a few solar masses to the scale of a spacecraft, and since 2021 there are warp-type solutions built from positive energy alone. The question has moved from "is it allowed" to "how much, and how do you control it". Watch the Casimir-cavity measurements and the interferometer bench tests: they are the first experiments that can turn a paper metric into a laboratory one.

Teaching aids

Three demonstrations you can run

1. The map and the globe. Lay a string along the shortest route between two distant cities on a globe, then transfer the same two cities to a flat wall map. The string route looks curved on the map. Ask which one is "really" straight. The correction table you would need to fix the flat map is a metric.
2. The wrinkle in the carpet. Put a marble on a rug and push a wrinkle under it across the room. The marble crosses the room without rolling. Ask what moved: the marble, or the space it sat on.
3. The GPS arithmetic. With a calculator, work rule 2 for a satellite at 26,600 kilometres from Earth's centre and for the ground at 6,400 kilometres. The difference in the factor, times 86,400 seconds, gives about 45 microseconds a day. Then subtract the special-relativity slowing for 3.9 kilometres per second, about 7 microseconds. The remaining 38 microseconds a day is why GPS clocks are set slow before launch.

Self-check (answers below)

1. What does the metric tell you, in one sentence?
2. Why do GPS satellite clocks gain about 38 microseconds a day, and what would happen without the correction?
3. In the Alcubierre metric, how fast does the craft move through its own local space?
4. What single ingredient does the wall of an Alcubierre bubble require, and where has that ingredient already been measured?
5. What do the quantum inequalities say about negative energy?

Answers. (1) For any two nearby events, how far apart they are and how much time separates them, as measured by local rulers and clocks. (2) They sit higher in Earth's gravity and run faster by about 45 microseconds a day, and move fast enough to run slower by about 7; the net gain is about 38, and without correction positions would drift by about 11 kilometres a day. (3) It does not move through it at all; the region of flat space around it is carried along. (4) Negative energy density; in the gap between Casimir plates. (5) It is allowed, but the more negative the energy the shorter the time it can be held: the bound falls as the fourth power of the sampling time.

One-page summary for the wall

• The metric is the rulebook of rulers and clocks at every point. Mass rewrites it. GPS, tower experiments, flown clocks, bent starlight and LIGO all read from it.
• Einstein's equations tie curvature to energy through a constant so small that spacetime is the stiffest thing there is.
• The Alcubierre metric contracts space ahead and expands it behind; the craft rides a moving wrinkle and never breaks the local speed limit.
• The wall needs negative energy density — measured in Casimir cavities, bounded by the quantum inequalities.
• The budget has fallen from more than the universe (1997) to solar masses (1999) to a spacecraft (2011) to positive-energy designs (2021). The frontier is the bench: Casimir-cavity energy densities and interferometer tests, with the next measurements named.
