The Metric Tensor, Warp Drives, and Wormholes

This book is named for a single mathematical object: the metric. It is the most important idea in the whole story. Good news: its core is easy to grasp. Once you have it, "engineering spacetime" stops being mystical. It becomes a specific, if bold, engineering target.

Before any of that, look at what such a drive does to the ground under a ship. Step through the frames below. The craft never moves quickly; the marks painted on the line ahead of it draw together anyway, and the ones behind it spread apart by exactly as much. The distance is what changed. Everything in this chapter is an attempt to price that picture.

The distance is what changed

Seven frames, advanced by you, one point each. The craft's own neighbourhood stays flat and unremarkable from the first frame to the last, while the coordinate distance ahead of it contracts and the distance behind it expands. Nothing on this line is moving quickly. The geometry drawn is Alcubierre's own, at the hundred-metre shell with a ten-metre wall that the site's warp-shell explorer opens on.

Walk the seven frames

Previous frameNext frameBack to the first frame

1. 1
2. 2
3. 3
4. 4
5. 5
6. 6
7. 7

• Coordinate marks, one every twenty metres

Frame 1 / 7

One line, nothing shaped yet

Here is the line from here to the destination, a coordinate mark every twenty metres, and the craft on the middle one. Nothing has been done to the geometry, so the marks are evenly spaced and the craft crosses them at an ordinary local speed. Hold on to that speed: it is the same speed at every frame that follows.

Rate at the craft

0.000 per metre advanced

Nothing on this line moves through local space any faster than it otherwise would, at any frame. The rate drawn is a rate of change of the geometry, not a velocity, and the craft's speed across its own flat neighbourhood is an ordinary local speed. The distance is the engineered quantity.

Contraction ahead and expansion behind is a coordinate description of Alcubierre's geometry, read off the expansion of the observers normal to the slices. It is what the published solution says, in the coordinates the solution is written in; later analyses treat that expansion as a consequence of the shift rather than the driver, and this drawing asserts nothing beyond the expression itself.

One family of observers is drawn here, and one family is never enough to judge a warp metric. Warp Factory maps the null and weak energy conditions point by point across every observer and returns the size of a violation rather than a verdict. That is the toolkit that does the real calculation, and it is the one each new design has to be put through.

• The source sheet: Alcubierre 1994, The warp drive — hyper-fast travel within general relativity
• The published bound: Pfenning and Ford 1997, on the wall thickness and the total
• The toolkit that does the real calculation: Warp Factory, the energy conditions mapped point by point

The metric is the universe's ruler

Spacetime does not come with distances printed on it. The metric tensor, written gᵤᵥ, is the rulebook. It tells you the real distance and elapsed time between two nearby events. Change the metric, and you change what "one meter" and "one second" mean at that spot.

The line element(4.1)

$$ds^2 = g_{\mu\nu}\, dx^{\mu} dx^{\nu}$$

One caution before going further, because it is the picture this chapter has to survive: a field of arrows is not a metric. The explorer below plots Newtonian acceleration directions around one or two spherical masses — enough to show that gravity pulls inward from every side and has no universal down — while gᵤᵥ is the rulebook those arrows are drawn on top of.

Gravity has no universal down

Imagine small test objects all around the masses. Each arrow shows the direction in which gravity changes an object’s motion, not the path it follows.

Mass arrangement

One spherical massTwo spherical masses

Viewpoint

FrontSideAboveBelowReset view

These controls move your viewpoint. They do not move the masses or change the gravitational field.

Turn around: 25°Tilt view: 18°

Try it: where is down?

1. Choose one mass. Predict where the arrows on its far side point, then turn the view to check. Look from above and below: do the arrows still point toward the mass?
2. Choose two masses and turn the view again. Each arrow now combines both pulls; it need not point at either center. The smaller mass contributes too.

Did turning the view change gravity, or only how you see it?

Check your answer

Only your view changed. The masses and the pull at each point stayed the same. There is no bottom underneath the whole scene.

Selected sample · Scaled teaching units

x, y and z are scene coordinates, not universal up or down.

Choose a sample pointSample 1: (1.25; 0.02604; 0)Sample 2: (-1.25; -0.02604; 0)Sample 3: (-0.9199; 0.07813; 0.8427)Sample 4: (0.9199; -0.07813; -0.8427)Sample 5: (0.1087; 0.1302; -1.238)Sample 6: (-0.1087; -0.1302; 1.238)Sample 7: (0.7524; 0.1823; 0.9814)Sample 8: (-0.7524; -0.1823; -0.9814)Sample 9: (-1.209; 0.2344; -0.2139)Sample 10: (1.209; -0.2344; 0.2139)Sample 11: (1.027; 0.2865; -0.6531)Sample 12: (-1.027; -0.2865; 0.6531)Sample 13: (-0.3124; 0.3385; 1.162)Sample 14: (0.3124; -0.3385; -1.162)Sample 15: (-0.5473; 0.3906; -1.054)Sample 16: (0.5473; -0.3906; 1.054)Sample 17: (1.098; 0.4427; 0.401)Sample 18: (-1.098; -0.4427; -0.401)Sample 19: (-1.061; 0.4948; 0.438)Sample 20: (1.061; -0.4948; -0.438)Sample 21: (0.4764; 0.5469; -1.018)Sample 22: (-0.4764; -0.5469; 1.018)Sample 23: (0.3284; 0.599; 1.047)Sample 24: (-0.3284; -0.599; -1.047)Sample 25: (-0.9232; 0.651; -0.535)Sample 26: (0.9232; -0.651; 0.535)Sample 27: (1.009; 0.7031; -0.2219)Sample 28: (-1.009; -0.7031; 0.2219)Sample 29: (-0.5729; 0.7552; 0.8148)Sample 30: (0.5729; -0.7552; -0.8148)Sample 31: (-0.1226; 0.8073; -0.9464)Sample 32: (0.1226; -0.8073; 0.9464)Sample 33: (0.6941; 0.8594; 0.585)Sample 34: (-0.6941; -0.8594; -0.585)Sample 35: (-0.8547; 0.9115; 0.03534)Sample 36: (0.8547; -0.9115; -0.03534)Sample 37: (0.5644; 0.9635; -0.5617)Sample 38: (-0.5644; -0.9635; 0.5617)Sample 39: (-0.03366; 1.016; 0.7279)Sample 40: (0.03366; -1.016; -0.7279)Sample 41: (-0.4165; 1.068; -0.4991)Sample 42: (0.4165; -1.068; 0.4991)Sample 43: (0.5505; 1.12; 0.07407)Sample 44: (-0.5505; -1.12; -0.07407)Sample 45: (-0.3571; 1.172; 0.2484)Sample 46: (0.3571; -1.172; -0.2484)Sample 47: (0.05571; 1.224; -0.2476)Sample 48: (-0.05571; -1.224; 0.2476)Sample 49: (2.05; 0.04271; 0)Sample 50: (-2.05; -0.04271; 0)Sample 51: (-1.509; 0.1281; 1.382)Sample 52: (1.509; -0.1281; -1.382)Sample 53: (0.1782; 0.2135; -2.031)Sample 54: (-0.1782; -0.2135; 2.031)Sample 55: (1.234; 0.299; 1.609)Sample 56: (-1.234; -0.299; -1.609)Sample 57: (-1.983; 0.3844; -0.3507)Sample 58: (1.983; -0.3844; 0.3507)Sample 59: (1.684; 0.4698; -1.071)Sample 60: (-1.684; -0.4698; 1.071)Sample 61: (-0.5123; 0.5552; 1.906)Sample 62: (0.5123; -0.5552; -1.906)Sample 63: (-0.8975; 0.6406; -1.728)Sample 64: (0.8975; -0.6406; 1.728)Sample 65: (1.801; 0.726; 0.6576)Sample 66: (-1.801; -0.726; -0.6576)Sample 67: (-1.74; 0.8115; 0.7183)Sample 68: (1.74; -0.8115; -0.7183)Sample 69: (0.7813; 0.8969; -1.67)Sample 70: (-0.7813; -0.8969; 1.67)Sample 71: (0.5385; 0.9823; 1.717)Sample 72: (-0.5385; -0.9823; -1.717)Sample 73: (-1.514; 1.068; -0.8775)Sample 74: (1.514; -1.068; 0.8775)Sample 75: (1.655; 1.153; -0.3639)Sample 76: (-1.655; -1.153; 0.3639)Sample 77: (-0.9395; 1.239; 1.336)Sample 78: (0.9395; -1.239; -1.336)Sample 79: (-0.2011; 1.324; -1.552)Sample 80: (0.2011; -1.324; 1.552)Sample 81: (1.138; 1.409; 0.9594)Sample 82: (-1.138; -1.409; -0.9594)Sample 83: (-1.402; 1.495; 0.05796)Sample 84: (1.402; -1.495; -0.05796)Sample 85: (0.9257; 1.58; -0.9212)Sample 86: (-0.9257; -1.58; 0.9212)Sample 87: (-0.0552; 1.666; 1.194)Sample 88: (0.0552; -1.666; -1.194)Sample 89: (-0.683; 1.751; -0.8185)Sample 90: (0.683; -1.751; 0.8185)Sample 91: (0.9029; 1.836; 0.1215)Sample 92: (-0.9029; -1.836; -0.1215)Sample 93: (-0.5856; 1.922; 0.4074)Sample 94: (0.5856; -1.922; -0.4074)Sample 95: (0.09136; 2.007; -0.4061)Sample 96: (-0.09136; -2.007; 0.4061)

Position (x, y, z)

1.25; 0.02604; 0

Acceleration (x, y, z)

-2.559; -0.05333; 0

Strength

2.56

Masses in this snapshot

• A: Mass 4; Radius 0.64; Center (0; 0; 0)

All sample values

The same sample positions and field values used by the diagram

Sample	Position (x, y, z)	Acceleration (x, y, z)	Strength
1	1.25; 0.02604; 0	-2.559; -0.05333; 0	2.56
2	-1.25; -0.02604; 0	2.559; 0.05333; 0	2.56
3	-0.9199; 0.07813; 0.8427	1.884; -0.16; -1.726	2.56
4	0.9199; -0.07813; -0.8427	-1.884; 0.16; 1.726	2.56
5	0.1087; 0.1302; -1.238	-0.2226; -0.2667; 2.536	2.56
6	-0.1087; -0.1302; 1.238	0.2226; 0.2667; -2.536	2.56
7	0.7524; 0.1823; 0.9814	-1.541; -0.3733; -2.01	2.56
8	-0.7524; -0.1823; -0.9814	1.541; 0.3733; 2.01	2.56
9	-1.209; 0.2344; -0.2139	2.476; -0.48; 0.438	2.56
10	1.209; -0.2344; 0.2139	-2.476; 0.48; -0.438	2.56
11	1.027; 0.2865; -0.6531	-2.103; -0.5867; 1.337	2.56
12	-1.027; -0.2865; 0.6531	2.103; 0.5867; -1.337	2.56
13	-0.3124; 0.3385; 1.162	0.6397; -0.6933; -2.38	2.56
14	0.3124; -0.3385; -1.162	-0.6397; 0.6933; 2.38	2.56
15	-0.5473; 0.3906; -1.054	1.121; -0.8; 2.158	2.56
16	0.5473; -0.3906; 1.054	-1.121; 0.8; -2.158	2.56
17	1.098; 0.4427; 0.401	-2.249; -0.9067; -0.8213	2.56
18	-1.098; -0.4427; -0.401	2.249; 0.9067; 0.8213	2.56
19	-1.061; 0.4948; 0.438	2.173; -1.013; -0.897	2.56
20	1.061; -0.4948; -0.438	-2.173; 1.013; 0.897	2.56
21	0.4764; 0.5469; -1.018	-0.9757; -1.12; 2.085	2.56
22	-0.4764; -0.5469; 1.018	0.9757; 1.12; -2.085	2.56
23	0.3284; 0.599; 1.047	-0.6725; -1.227; -2.144	2.56
24	-0.3284; -0.599; -1.047	0.6725; 1.227; 2.144	2.56
25	-0.9232; 0.651; -0.535	1.891; -1.333; 1.096	2.56
26	0.9232; -0.651; 0.535	-1.891; 1.333; -1.096	2.56
27	1.009; 0.7031; -0.2219	-2.067; -1.44; 0.4545	2.56
28	-1.009; -0.7031; 0.2219	2.067; 1.44; -0.4545	2.56
29	-0.5729; 0.7552; 0.8148	1.173; -1.547; -1.669	2.56
30	0.5729; -0.7552; -0.8148	-1.173; 1.547; 1.669	2.56
31	-0.1226; 0.8073; -0.9464	0.2512; -1.653; 1.938	2.56
32	0.1226; -0.8073; 0.9464	-0.2512; 1.653; -1.938	2.56
33	0.6941; 0.8594; 0.585	-1.422; -1.76; -1.198	2.56
34	-0.6941; -0.8594; -0.585	1.422; 1.76; 1.198	2.56
35	-0.8547; 0.9115; 0.03534	1.75; -1.867; -0.07238	2.56
36	0.8547; -0.9115; -0.03534	-1.75; 1.867; 0.07238	2.56
37	0.5644; 0.9635; -0.5617	-1.156; -1.973; 1.15	2.56
38	-0.5644; -0.9635; 0.5617	1.156; 1.973; -1.15	2.56
39	-0.03366; 1.016; 0.7279	0.06894; -2.08; -1.491	2.56
40	0.03366; -1.016; -0.7279	-0.06894; 2.08; 1.491	2.56
41	-0.4165; 1.068; -0.4991	0.8529; -2.187; 1.022	2.56
42	0.4165; -1.068; 0.4991	-0.8529; 2.187; -1.022	2.56
43	0.5505; 1.12; 0.07407	-1.127; -2.293; -0.1517	2.56
44	-0.5505; -1.12; -0.07407	1.127; 2.293; 0.1517	2.56
45	-0.3571; 1.172; 0.2484	0.7313; -2.4; -0.5088	2.56
46	0.3571; -1.172; -0.2484	-0.7313; 2.4; 0.5088	2.56
47	0.05571; 1.224; -0.2476	-0.1141; -2.507; 0.5072	2.56
48	-0.05571; -1.224; 0.2476	0.1141; 2.507; -0.5072	2.56
49	2.05; 0.04271; 0	-0.9516; -0.01983; 0	0.9518
50	-2.05; -0.04271; 0	0.9516; 0.01983; 0	0.9518
51	-1.509; 0.1281; 1.382	0.7005; -0.05949; -0.6417	0.9518
52	1.509; -0.1281; -1.382	-0.7005; 0.05949; 0.6417	0.9518
53	0.1782; 0.2135; -2.031	-0.08276; -0.09915; 0.943	0.9518
54	-0.1782; -0.2135; 2.031	0.08276; 0.09915; -0.943	0.9518
55	1.234; 0.299; 1.609	-0.5729; -0.1388; -0.7473	0.9518
56	-1.234; -0.299; -1.609	0.5729; 0.1388; 0.7473	0.9518
57	-1.983; 0.3844; -0.3507	0.9206; -0.1785; 0.1628	0.9518
58	1.983; -0.3844; 0.3507	-0.9206; 0.1785; -0.1628	0.9518
59	1.684; 0.4698; -1.071	-0.7817; -0.2181; 0.4973	0.9518
60	-1.684; -0.4698; 1.071	0.7817; 0.2181; -0.4973	0.9518
61	-0.5123; 0.5552; 1.906	0.2379; -0.2578; -0.8848	0.9518
62	0.5123; -0.5552; -1.906	-0.2379; 0.2578; 0.8848	0.9518
63	-0.8975; 0.6406; -1.728	0.4167; -0.2974; 0.8024	0.9518
64	0.8975; -0.6406; 1.728	-0.4167; 0.2974; -0.8024	0.9518
65	1.801; 0.726; 0.6576	-0.8361; -0.3371; -0.3053	0.9518
66	-1.801; -0.726; -0.6576	0.8361; 0.3371; 0.3053	0.9518
67	-1.74; 0.8115; 0.7183	0.8079; -0.3768; -0.3335	0.9518
68	1.74; -0.8115; -0.7183	-0.8079; 0.3768; 0.3335	0.9518
69	0.7813; 0.8969; -1.67	-0.3628; -0.4164; 0.7752	0.9518
70	-0.7813; -0.8969; 1.67	0.3628; 0.4164; -0.7752	0.9518
71	0.5385; 0.9823; 1.717	-0.25; -0.4561; -0.7971	0.9518
72	-0.5385; -0.9823; -1.717	0.25; 0.4561; 0.7971	0.9518
73	-1.514; 1.068; -0.8775	0.703; -0.4957; 0.4074	0.9518
74	1.514; -1.068; 0.8775	-0.703; 0.4957; -0.4074	0.9518
75	1.655; 1.153; -0.3639	-0.7686; -0.5354; 0.169	0.9518
76	-1.655; -1.153; 0.3639	0.7686; 0.5354; -0.169	0.9518
77	-0.9395; 1.239; 1.336	0.4362; -0.5751; -0.6205	0.9518
78	0.9395; -1.239; -1.336	-0.4362; 0.5751; 0.6205	0.9518
79	-0.2011; 1.324; -1.552	0.09339; -0.6147; 0.7207	0.9518
80	0.2011; -1.324; 1.552	-0.09339; 0.6147; -0.7207	0.9518
81	1.138; 1.409; 0.9594	-0.5285; -0.6544; -0.4454	0.9518
82	-1.138; -1.409; -0.9594	0.5285; 0.6544; 0.4454	0.9518
83	-1.402; 1.495; 0.05796	0.6508; -0.694; -0.02691	0.9518
84	1.402; -1.495; -0.05796	-0.6508; 0.694; 0.02691	0.9518
85	0.9257; 1.58; -0.9212	-0.4298; -0.7337; 0.4277	0.9518
86	-0.9257; -1.58; 0.9212	0.4298; 0.7337; -0.4277	0.9518
87	-0.0552; 1.666; 1.194	0.02563; -0.7733; -0.5543	0.9518
88	0.0552; -1.666; -1.194	-0.02563; 0.7733; 0.5543	0.9518
89	-0.683; 1.751; -0.8185	0.3171; -0.813; 0.38	0.9518
90	0.683; -1.751; 0.8185	-0.3171; 0.813; -0.38	0.9518
91	0.9029; 1.836; 0.1215	-0.4192; -0.8527; -0.0564	0.9518
92	-0.9029; -1.836; -0.1215	0.4192; 0.8527; 0.0564	0.9518
93	-0.5856; 1.922; 0.4074	0.2719; -0.8923; -0.1892	0.9518
94	0.5856; -1.922; -0.4074	-0.2719; 0.8923; 0.1892	0.9518
95	0.09136; 2.007; -0.4061	-0.04242; -0.932; 0.1886	0.9518
96	-0.09136; -2.007; 0.4061	0.04242; 0.932; -0.1886	0.9518

This Newtonian snapshot assumes each body's mass is distributed the same way in every direction from its center. It shows only the exterior field, not spacetime curvature. The bodies stay fixed; their motion is not simulated.

Alcubierre's warp drive: legal under Einstein

In 1994 the Mexican physicist Miguel Alcubierre wrote down a metric that does exactly this. His solution contracts space in front of a craft and expands it behind. That carries the craft forward inside a flat "bubble." The ship never locally moves faster than light. It sits still in its own patch of calm space while the space around it moves. Relativity's speed limit applies to motion through space. Alcubierre found a loophole: move space instead.

As mathematics, the Alcubierre metric is a valid, published solution of Einstein's equations. This is not fringe. It is in textbooks and taught in relativity courses. The same holds for Morris–Thorne traversable wormholes (1988). They show Einstein's equations allow tunnels that connect distant regions.

The instrument that opened this chapter drew that as marks on a line. Here is the bubble those marks sit in. Orbit it and watch where space is contracted and where it is stretched — the throat of a Morris–Thorne wormhole gets the same treatment in the chapter that prices it.

The ingredient the equations demand: negative energy

Here is the engineering target, stated exactly. To hold a warp bubble or a wormhole open, those same equations ask for a strange ingredient. You need a region of negative energy density — matter that weighs less than nothing. That breaks what physicists call the energy conditions.

Classical energy condition (which warp drives must break)(4.2)

$$T_{\mu\nu}\, u^{\mu} u^{\nu} \;\geq\; 0$$

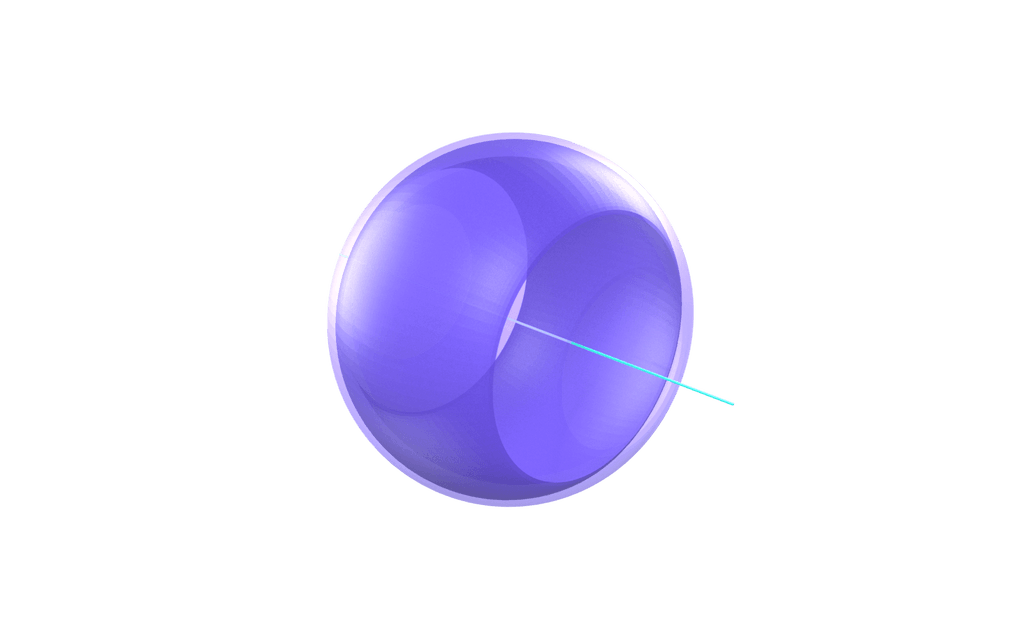

The shell explorer

Set the shell's radius, the thickness of its wall and the speed it carries, and read back where the energy density goes negative and by how much. The map is a slice through the shell along its direction of travel; the darker the cell, the more negative the density an observer at rest in the slices would measure there.

This shell

Shell radius

100 m

Wall thickness

10.0 m

Shell velocity

1.0 c

Back to the starting shell

• Negative energy density
• Flat: no energy density

Most negative energy density on the map:

-2.57E39 J/m³

Total, over the whole shell:

-3.37E45 J

The same total as a mass equivalent:

-3.75E31 g

The published requirement, for comparison

Wall thickness the quantum inequality permits, at this speed:

1.62E-33 m

What this model gives for a hundred-metre shell with that wall:

-2.31E65 g

What Pfenning and Ford published for the same case:

-6E65 g

The two agree to an order of magnitude, which is what a closed-form model and a published estimate should do. The comparison is the point of the instrument: move the wall slider to anything a workshop could build and the bill falls by dozens of orders of magnitude, and that is precisely the gap the field is working on.

What this model gives for a hundred-metre shell with that wall: 100 m

Alcubierre, 1994 — the metric this model evaluatesPfenning and Ford, 1997 — the published requirement

The explorer gives you the profile; the model gives you its shape in space. Turn it and look along the direction of travel — that is where the wall the explorer plots goes to nothing.

Small negative-energy densities are real and measured (Casimir, squeezed light). The large, sustained kind a moving warp drive would need is far past anything made so far. Mathematical possibility is not yet buildability. That gap is the load-bearing sentence of the whole book — and it is also the job list. Every serious programme in the later chapters is an attempt to close some part of it.

How stiff is spacetime, exactly?

"Mathematical possibility is not yet buildability" is the load-bearing sentence, and there is a number attached to it. Eric Davis takes the gravitational coupling constant out of Einstein's field equations, reads a Young's-modulus analogue off it, and gives it two ways in the same presentation: of order 10²⁵ in SI units, and roughly eighteen orders of magnitude stiffer than steel. Those are his two framings of one slide rather than one derived from the other — structural steel is about 2 × 10¹¹ pascals, which would put the SI figure about fourteen orders above it — and no sheet in this library carries either number, so read them as an order-of-magnitude specification rather than a measured constant. The library does carry an independent route to the same size of job: asked for the Young's modulus of spacetime, Rainer Weiss gave about 10²⁰ times that of steel at a hundred hertz — twenty orders, read off gravitational waves instead of off the coupling constant, and landing within two orders of Davis. He is presenting it to an audience of people who want metric engineering to work, which is exactly why it is worth having. It is the specification: it says how much stress-energy a device has to concentrate for a given amount of curvature, and every proposal in the chapters that follow can be asked what it puts against it.

The coupling in Einstein's equation is c⁴/8πG, and its size is precisely why enormous stress-energy buys a small curvature. What a particular device does about that is the open question — and it is the question the rest of this book is written to follow.

The live 2021 debate: how physical can a warp drive be?

This is not a settled museum piece. It is an active research front, and 2021 was a busy year. Alexey Bobrick and Gianni Martire published "Introducing physical warp drives" (Classical and Quantum Gravity). They reframed all warp drives as one general class. Then they showed that slower-than-light "warp shells" can be built from positive energy — no exotic matter needed just to hold one. That strengthens the modest version of the idea considerably.

The same year sharpened the harder version. Erik Lentz (2021) proposed positive-energy warps that actually move. Santiago, Schuster, and Visser (2021) replied with a general theorem: any warp drive that actually moves must break the null energy condition. An older bound sets the scale. Pfenning and Ford (1997) checked Alcubierre's own solution. For a bubble big enough to carry people, the negative energy is huge. The wall of the bubble works out thinner than an atom.

Static, positive-energy warp shells look physically allowed (Bobrick–Martire). A moving drive from positive energy alone is still a proposal. The theorem says it has to break the null energy condition somewhere. That is the bar the next design must clear. Both sides state their assumptions in the open. That is exactly what lets the next paper test them.

Harold White's warp work adds a result this chapter should have led with sooner: the N = 3 configuration. You may not need a complete bubble around the craft. Three sources may be enough to produce the geometry. It is published and peer-reviewed, and it matters here for a plain reason. Three is the number of objects in the formation Chapter 9 has been reading since the beginning. That is not proof of anything. It is a published minimal configuration that matches an observed one, which is the sort of coincidence worth writing down and then testing.

The document that took this seriously — on the government's dime

In 2010 the U.S. Defense Intelligence Agency released a reference document (later via FOIA). Its title: "Advanced Space Propulsion Based on Vacuum (Spacetime Metric) Engineering." Harold Puthoff wrote it under the Pentagon's advanced-aerospace program. It is the source of this project's name. In sober government prose it lays out the chain we have been building. The vacuum is a structured, energetic medium (Chapter 2). General relativity says that medium carries a metric (this chapter). So engineering the metric is "not a priori ruled out." You could alter time rate, distance, the local speed of light, and effective mass. You might even produce "gravity/antigravity forces."

The document is real, citable, and unclassified. It puts metric engineering on the record as a long-range research target. A funded study shows serious interest, not a working device. The bench results below are the part to watch.

The objection · Standard field theory

“A warp drive needs absurd amounts of exotic energy — the numbers put it out of reach.”

The answer

The numbers are the heart of the problem, so here they are. Pfenning and Ford put the negative energy for a human-scale Alcubierre bubble at a mass-equivalent many times the visible universe, packed into a shell thinner than an atom. Van Den Broeck's 1999 "bottle" geometry, and refinements after it, cut that requirement enormously on paper. Bobrick and Martire then showed that a subluminal warp shell needs no exotic matter to hold at all. Santiago, Schuster and Visser add the constraint every moving design has to clear: it must break the null energy condition somewhere. So the shape of the field is a narrowing target, not a closed door, and the narrowing is where the interesting work is. What to watch is the bench: Chance Glenn's funded torsion-balance test, Gary Stephenson's Josephson-junction emitter, and any new quantum-inequality bound that tightens or loosens the negative-energy budget.

What the field added — July to September 2026

This was a strong season for metric engineering on the bench, and all of it is written up with timestamps in the research log. The metric tensor and the warp-bubble energy budget, from rulers and clocks to the 2021 positive-energy solutions, are taught in full in the metric-tensor course. Chance Glenn of Alabama A&M published interferometer measurements next to a 400 kV spark gap, with fringe shifts that track the spark's power, distance and pulse rate and are the same magnitude when the spark is turned through 90 degrees, which is the control that rules out a refractive-index explanation, and he has a funded torsion-balance thrust test due within months. Gary Stephenson presented the "gaser", a phased array of Josephson junctions on a silicon wafer designed to emit high-frequency gravitational waves, specified in materials, frequency and bias. A physics explainer walked through the Gertsenshtein effect, the general-relativistic conversion of light into gravitational waves in a magnetic field.

The numbers to carry around also got taught. Spacetime's effective stiffness at gravitational-wave frequencies is of order 10³¹ pascals and rises with frequency, which is why every serious proposal concentrates energy in space and time and reaches for the highest frequencies. The maximum-force bound c⁴/4G is the ceiling the universe imposes. Two new routes joined the chapter's sources: Takaaki Musha's 2017 paper on tunnelling through the light barrier by suppressing the zero-point spectrum, which presents a proposed mechanism with its own numbers attached, and Chad Wanless's 2025 checklist of what a warp field should look like on camera, which turns the metric into observables anyone can test.

The season also produced a clean argument for why metric engineering, and not portal transit, is the interstellar route. A portal needs an emitter at both ends. As Douglas Miller put it on 8 September, "you got to have orbs on the other side." That is wonderful for moving between two places you already hold. It is no use at all for reaching a star nobody has visited. Warp geometry carries its own apparatus with it, which is why it is the harder problem and the only one that scales.

---

Measurements and calculations to pursue

The metric tensor describes spacetime geometry. Alcubierre and Morris–Thorne explore solutions of general relativity; Bobrick–Martire (2021) examine subluminal positive-energy warp shells. Producing the required conditions for a macroscopic moving drive remains an engineering task. The DIA DIRD records metric engineering as a research target.

Two tasks follow: one answer on paper, one on the bench. On paper, a proof that the needed negative energy can never be held steady would close the moving-warp route. On the bench, watch Chance Glenn's funded torsion-balance thrust test. Watch too for a second lab repeating his fringe shifts.

Sources

Primary

• M. Alcubierre (1994), "The warp drive: hyper-fast travel within general relativity," Class. Quantum Grav. 11, L73 (arXiv:gr-qc/0009013). (Downloaded.)
• M. Morris & K. Thorne (1988), "Wormholes in spacetime and their use for interstellar travel," Am. J. Phys. 56, 395. DOI 10.1119/1.15620.
• H. Puthoff (2010), "Advanced Space Propulsion Based on Vacuum (Spacetime Metric) Engineering," JBIS 63, 82 (arXiv:1204.2184) - the DIA DIRD's published cousin; the project's namesake. (Downloaded.)
• E. Davis (2004), "Teleportation Physics Study," AFRL-PR-ED-TR-2003-0034, DTIC ADA425545 (corrected accession; not ADA416108). (Downloaded.)

The live modern debate (independent, peer-reviewed - beyond the source corpus)

• A. Bobrick & G. Martire (2021), "Introducing physical warp drives," Class. Quantum Grav. 38, 105009 (arXiv:2102.06824) - subluminal warp shells from positive energy.
• E. Lentz (2021), "Breaking the warp barrier," Class. Quantum Grav. 38, 075015 (arXiv:2006.07125) - a positive-energy soliton claim, still being argued out.
• C. Van Den Broeck (1999), "A warp drive with more reasonable total energy requirements," arXiv:gr-qc/9905084.

Where the energy budget is worked out

• M. Pfenning & L. Ford (1997), "The unphysical nature of warp drive," arXiv:gr-qc/9702026 - the quantum-inequality bound: astronomical negative energy, sub-atomic bubble wall. The number every later design is measured against.
• S. Santiago, J. Schuster & M. Visser (2021), "Generic warp drives violate the null energy condition," arXiv:2105.03079 - the theorem that any moving drive must break the null energy condition; the constraint each positive-energy proposal now has to answer.
• H. White, warp-drive work described on air as an "N = 3 NLS" result - three sources rather than a complete bubble; read out in the D. Miller ZPE All Stars interview, Hard Truths Podcast (8 September 2026; YouTube 5MIGis0S8Fc, @1:19:26, @1:22:20). The journal record is the item to locate next.

A genuine dispute: Lentz and Santiago-Schuster-Visser are independent groups reaching opposite conclusions - a live scientific argument in the journals, and the healthy kind.
